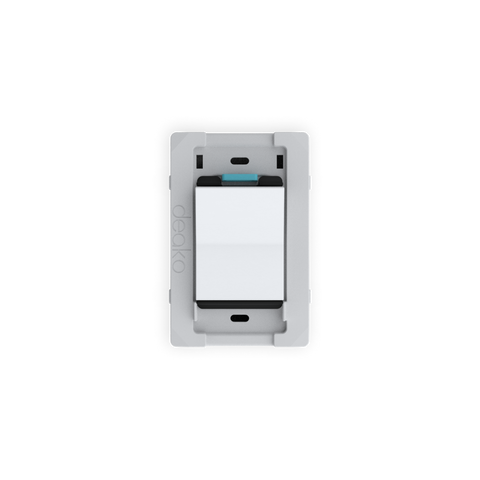

Wired Connector™ (Backplate) with Single Pole Simple Rocker Switch
Single Pole Simple Rocker Switch
Surface & Color: |
White Plastic |
Screen Sensor: |
None |
Scene Buttons: |
None |
Input Voltage: |
120 VAC |
Input Frequency: |
60 Hz |
Supported Currents & Load Types: |
15A Resistive/General Use |
Maximum Dimmable Load: |
N/A |
Compatible Wiring: |
Standard wiring. Neutral not required |
Wireless: |
None |
Size: |
1.77" X 1.70" X 3.50" |
Weight: |
2.4 oz |
Compatibility: |
Single pole only |
Integrations: |
N/A |
Operating Temperature: |
0 - 40 deg. C |
Environment: |
Indoor, Dry location only |
Warranty: |
1-year |
Wired Connectors™ (Backplates)
Compatibility: |
Single-Pole 3-way & 4-way circuits |
Height: |
4.45" |
Depth: |
1.38" |
Width: |
1-switch - 2.93" 2-switch - 4.75" 3-switch - 6.57" 4-switch - 8.34" |
Faceplates
Height: |
4.75" |
Depth: |
0.39" |
Width: |
1-switch - 3" 2-switch - 4.82" 3-switch - 6.64" 4-switch - 8.45" |
Does Deako require any special wiring?
No, Deako backplates work with existing wires in your home. Deako smart products do require a neutral wire which is common in any home built in the US or Canada within the past 40 years.
What if I have multiple switches side-by-side?

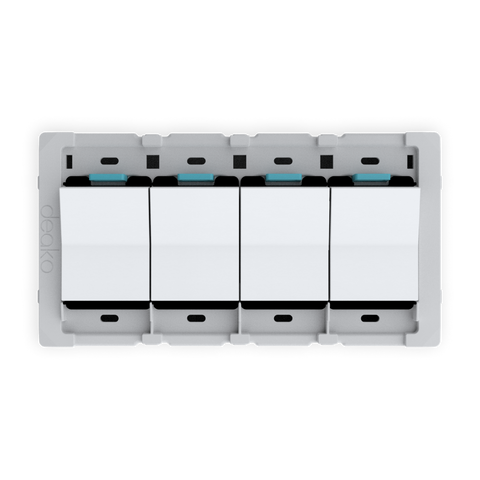

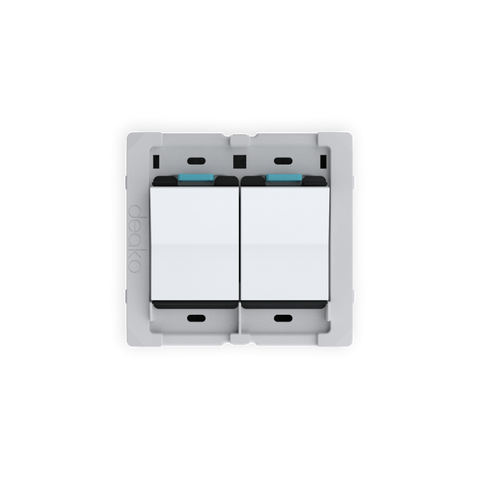

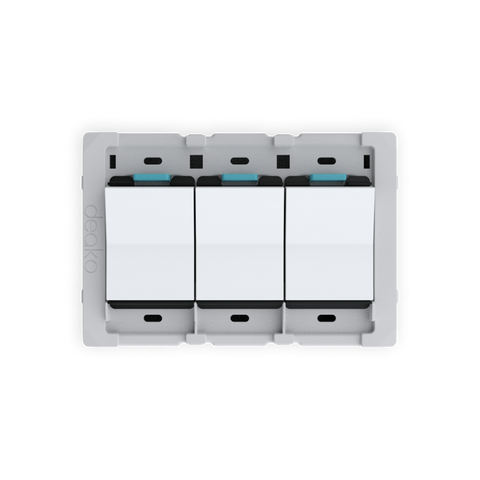

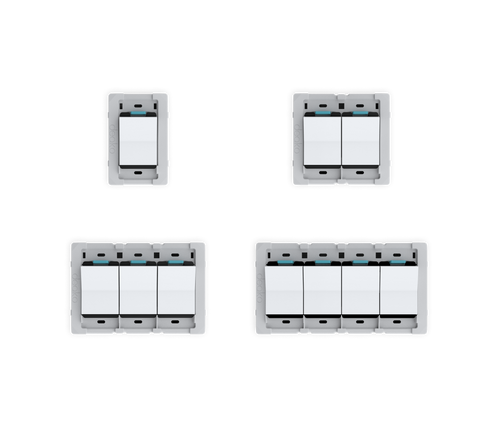

When multiple switches sit beside each other, this is called a multi-gang. We support 1, 2, 3, and 4-gang configurations. Use the drop-down menu on the Deako Store to select the correct number of gangs for your home.
Can Quickwire backplates be used on a multiway with wired backplates?
Yes, Quick Wire Connectors™ (backplates) and Wired Connectors™ (Backplates) can be used on the same multiway. Check out wiring diagrams for multiways here.
For more FAQs, visit our Support Center.
