Deako

Universal Connector™ (Backplate) & Faceplate with Single-Pole Simple Rocker Switch

(0 Reviews)
$16.99
Choose variants
Select Select an option
Deako’s Universal Connector™ (Backplate) is natively compatible with copper-clad aluminum and traditional copper wiring up to 10 AWG. Additionally, the Universal Connector™ (Backplate) supports all Deako switches, enabling anyone to easily upgrade their home lighting.
Installation is quick and easy with the use of screw terminals on the rear of the Connector™ (Backplate) and is compatible with all NEC compliant light circuit wiring such as single-pole, 3-way, and 4-way configurations.

Features

  • UL Listed for both traditional copper and copper clad aluminum wiring between 10 and 14 AWG

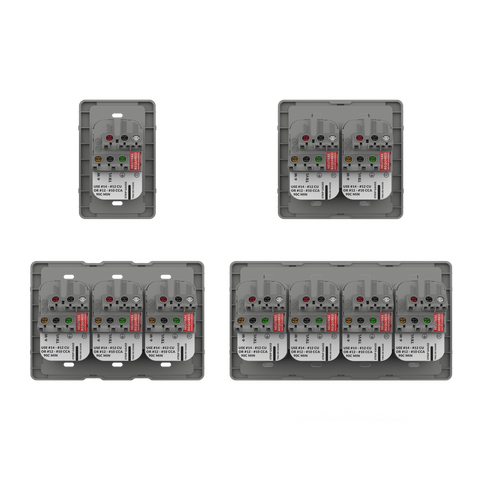

  • Offered in 1, 2, 3 and 4 gang options for Connectors™ (Backplates) with Simple Rocker Switches and Faceplates
  • Compatible with all Deako Simple and Smart lighting controls
  • Compatible with all current Deako Faceplates
  • Included mounting hardware

What's included

  • Universal Connector™ (Backplate)
  • Single Pole Simple Rocker Switch(es) (1 per Connector™ slot)
  • Faceplate

Download the Universal Backplate cut sheet
1-Gang Universal Connector™ (Backplate) with Single Pole Simple Rocker Switch 2-Gang Universal Connector™ (Backplate) with Single Pole Simple Rocker Switches 3-Gang Universal Connector™ (Backplate) with Single Pole Simple Rocker Switches 4-Gang Universal Connector™ (Backplate) with Single Pole Simple Rocker Switches
SKU DS-BS1U-WHNL-UCX DS-BS2U-WHNL-UCX DS-BS3U-WHNL-UCX DS-BS4U-WHNL-UCX
Connector™ (Backplate) Dimensions (H x W x D) 4.45” x 2.91” x 2.44” 4.45” x 4.72” x 2.44” 4.45” x 6.55” x 2.44” 4.45” x 8.35” x 2.44”
Connector™ (Backplate) Weight 2.8 oz 4.9 oz 7.0 oz 8.5 oz
Case Quantity 50 20 20 10
Min. j-box Interior (W x D) 2.9” x 1.8” 4.7” x 1.7” 6.5” x 1.7” 8.3” x 1.7”
Wire Strip Length 0.5”
Max. Screw Terminal Torque 12 in-lb
Faceplate Compatibility / SKU 1-Gang Faceplate
DS-FP1Y-WHWH-UCX		 2-Gang Faceplate
DS-FP2Y-WHWH-UCX		 3-Gang Faceplate
DS-FP3Y-WHWH-UCX		 4-Gang Faceplate
DS-FP4Y-WHWH-UCX
Compatibility Single pole, 3-way, 4-way and dead-end circuits
Deako Faceplate DS-FP series
Deako Switches DS-SS, DS-CS, & DS-CD series
All standard NEC compliant junction boxes (Deako recommends 2.5” depth for ease of installation)
Regulatory Approvals Meets the UL 514D & UL20 specification
Power 120V AC 15A
Environment Indoor use only
Operating Temperature Range 0ºC to 40ºC (32ºF to 104ºF)
Warranty 1-year

Does Deako require any special wiring?

No, Deako Connectors™ (Backplates) work with existing wires in your home. Deako smart products do require a neutral wire which is common in any home built in the US or Canada within the past 40 years.


What if I have multiple switches side-by-side?

When multiple switches sit beside each other, this is called a multi-gang. We support 1, 2, 3, 4, and 5-gang configurations. Use the drop-down menu on the Deako Store to select the correct number of gangs for your home.
