Universal Backplate & Faceplate with Single-Pole Simple Rocker Switch

Deako’s faceplates and backplates are specifically designed for all Deako switches and come ready to install in your home. The faceplate can easily be removed to click switches in and out of the backplate, allowing for flexibility in switch placement.

The Universal Backplate dramatically decreases installation time with stab-in wire terminals.

The rocker switch can easily be changed out to upgrade to a Deako specialty switch without needing to call an electrician or turn the power off.

What's included

Universal Backplate
Single Pole Simple Rocker Switch(es) (1 per backplate slot)
Faceplate

Download the Single Pole Simple Rocker Switch cut sheet

Single Pole Simple Rocker Switch

Surface & Color:	White Plastic
Screen Sensor:	None
Scene Buttons:	None
Input Voltage:	120 VAC
Input Frequency:	60 Hz
Supported Currents & Load Types:	15A Resistive/General Use
Maximum Dimmable Load:	N/A
Compatible Wiring:	Standard wiring. Neutral not required
Wireless:	None
Size:	1.77" X 1.70" X 3.50"
Weight:	2.4 oz
Compatibility:	Single pole only
Integrations:	N/A
Operating Temperature:	0 - 40 deg. C
Environment:	Indoor, Dry location only
Warranty:	1-year

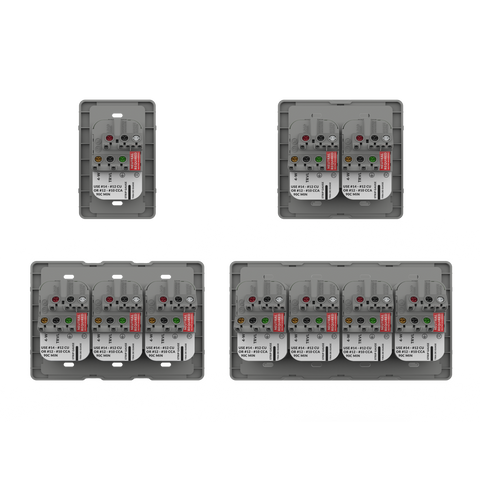

Universal Backplates

Compatibility:	Single-pole, 3-way, 4-way, and dead-end circuits Deako Faceplate DS-FP series Deako Switches DS-SS, DS-CS, and DS-CD series All standard NEC compliant junction boxes (Deako recommends 2.5" depth for ease of installation)
Height:	4.45"
Depth:	2.44"
Width:	1-Gang - 2.91" 2-Gang - 4.72" 3-Gang - 6.55" 4-Gang - 8.35"
Min. j-box Interior (W x D):	1-Gang - 2.9" x 1.8" 2-Gang - 4.7" x 1.7" 3-Gang - 6.5" x 1.7" 4-Gang - 8.3" x 1.7"
Wire Strip Length	0.5"
Max. Screw Terminal Torque	12 in-lb
Regulatory Approvals	Meets the UL 514D & UL20 specification
Power	120V AC 15A
Environment	Indoor use only
Operating Temperature Range	0°C to 40°C (32°F to 104°F)
Warranty	1-year
Vertical Markets	Residential Multiple dwellings Hospitality/lodging

Faceplates

Height:

4.75"

Depth:

0.39"

Width:

1-switch - 3"

2-switch - 4.82"

3-switch - 6.64"

4-switch - 8.45"

Does Deako require any special wiring?

No, Deako backplates work with existing wires in your home. Deako smart products do require a neutral wire which is common in any home built in the US or Canada within the past 40 years.

What if I have multiple switches side-by-side?

When multiple switches sit beside each other, this is called a multi-gang. We support 1, 2, 3, 4, and 5-gang configurations. Use the drop-down menu on the Deako Store to select the correct number of gangs for your home.

Can Quickwire backplates be used on a multiway with wired backplates?

Yes, Quickwire backplates and wired backplates can be used on the same multiway. Check out wiring diagrams for multiways here.

For more FAQs, visit our Support Center.
